    Crawler Mounted Transfer Conveyor For Opencast Mines Material Handling

    Ask Lasest Price
    Brand Name : SSI-ZHIGO
    Model Number : customized
    Certification : manufacture certificate
    Price : US $1,500,000-5,000,000/ Set
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets / year
    Delivery Time : 6 months
    • Product Details
    • Company Profile

    Crawler Mounted Transfer Conveyor For Opencast Mines Material Handling

    Transfer Conveyors on Crawler Crawler Conveyor Crawler-Mounted Transfer Conveyors


    Working principle

    During operation, the unloading conveyor belt will conveying the materials to the receiving belt conveyor of the dumper, then the receiving belt conveyor will conveying them to the discharging belt conveyor, and finally the bulk materials will be discharged to the dump.

    Composition

    The Crawler-Mounted Transfer Conveyors is mainly composed of discharge boom, discharge belt conveyor, rotary steel structure, crawler walking mechanism, tower, rotary device, luffing device, receiving boom, receiving belt conveyor, operation room, electrical equipment, etc

    Feature

    The equipment has good mobility, convenient installation, operation and maintenance, and stable and reliable operation.

    Applications

    Crawler-Mounted Transfer Conveyors is mainly used at the end of open-pit waste dump or other bulk material transportation and discharge production lines. It is widely used in all kinds of mining and earthwork, gravel and rock excavation projects.


    Technical specification


    descriptionparameterunit
    materialdinas
    density1.5~2.3t/m3
    granularity<200mm
    moisture<8%
    capacity200~5000t/h
    Radius of gyration25~45m

    NOTICES

    The customer shall provide the following information when place order:

    • character of bulk material;
    • Stockyard information;
    • Process flow chart;
    • Power supply;
    • Communication and control requirements.

    Applicatios

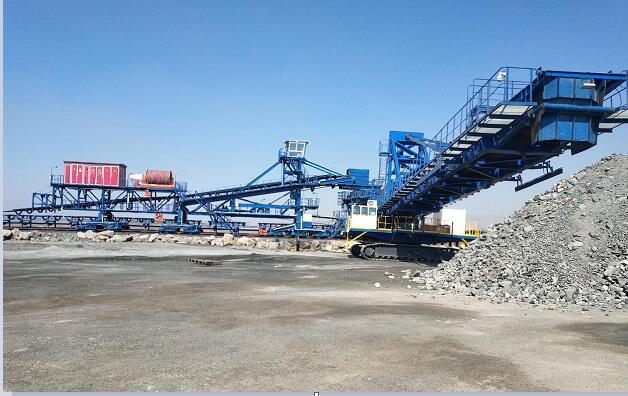

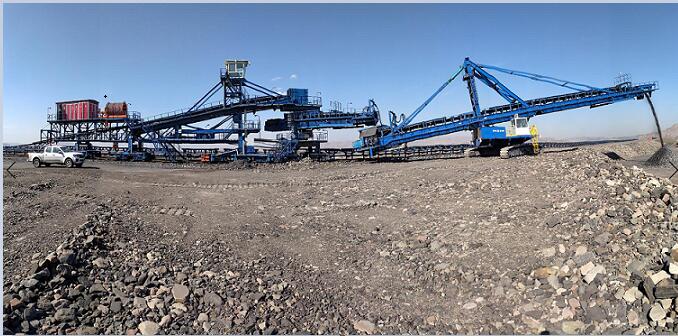

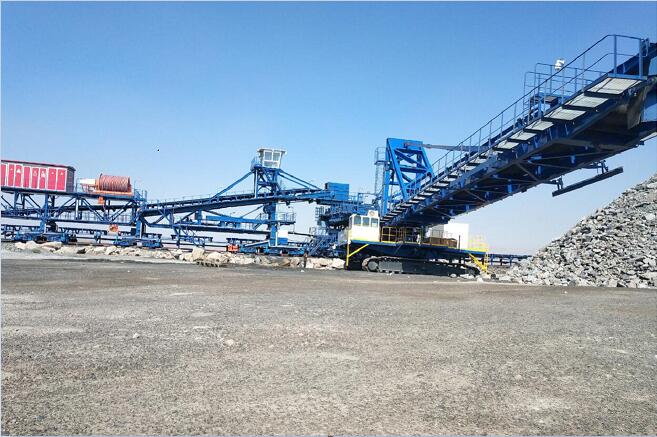

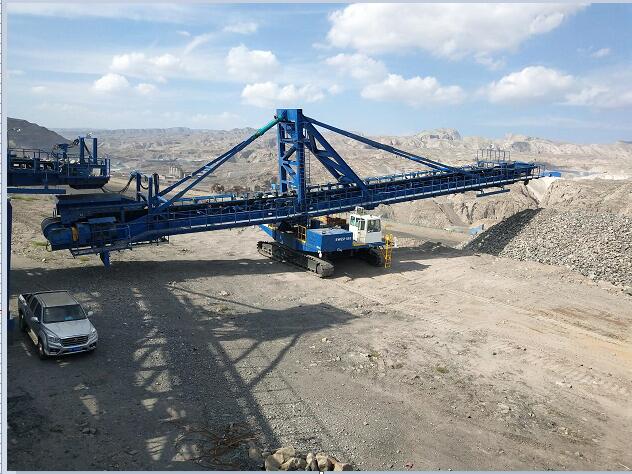

    Case1

    Case2

    Case3

    Case4

    Case5

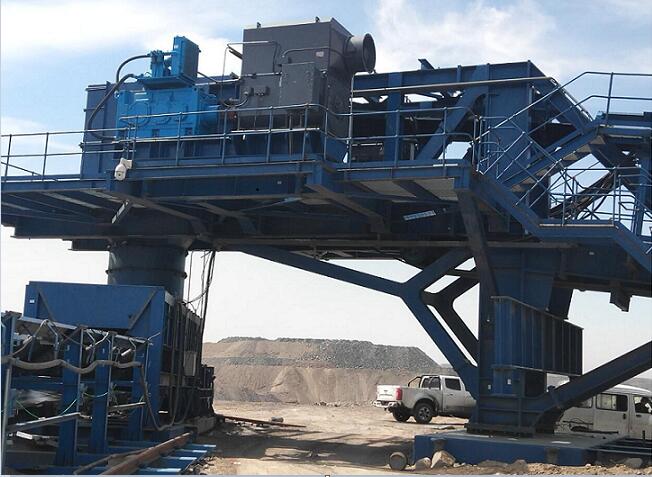

    Photos of our factory
