    Electric Hydraulic Foldable Boom Marine Crane Installed On Multi Purpose Vessel

    Ask Lasest Price
    Brand Name : SSI
    Model Number : 2t20m
    Certification : ABS/BV/CCS/GL/RINA/RMRS/LR
    Price : USD 200000
    Supply Ability : 30set/year
    Delivery Time : 3.5 months
    • Product Details
    • Company Profile

    Electric Hydraulic Foldable Boom Marine Crane Installed On Multi Purpose Vessel

    Electric hydraulic foldable boom marine crane installed on multi purpose vessel


    The foldable boom marine crane, offshore crane is designed as an electro-hydraulic driven articulated boom crane, with integrated electro-hydraulic power package or independent electro-hydraulic power package, delivered as a complete unit ready for installation to foundation. The crane is equipped with hydraulic powered winch, hydraulic powered luffing, hydraulic powered extension and hydraulic powered slewing system.

    The crane is installed with a rolled steel pedestal for bolting or welding to deck foundation with a standard height of the crane. The different pedestal height is available base on customer`s requirement. The standard foldable boom crane is supplied with an operator seat mounted on crane house. Operator control station is available base on customer`s requirement.


    Technical specification


    1SWL2t@20m
    2Max working radius20m
    3Min working radius3m
    4Hosting speed0~12m/min
    5Slewing speed1r/min
    6Slewing angle360° free
    7Luffing time60s
    8Hook travel30m
    9Folding time65s
    10Extension time120s
    11Working condition
    Heel≤ 5°
    Trim≤ 2°
    12Electric motor
    Power37 Kw
    Speed1480r/min
    Power source440V 50Hz,
    Protect classF
    Working typeS1
    13Flow80L/min
    14Design temperature-10°~40°
    15Dead weight~15500 kg

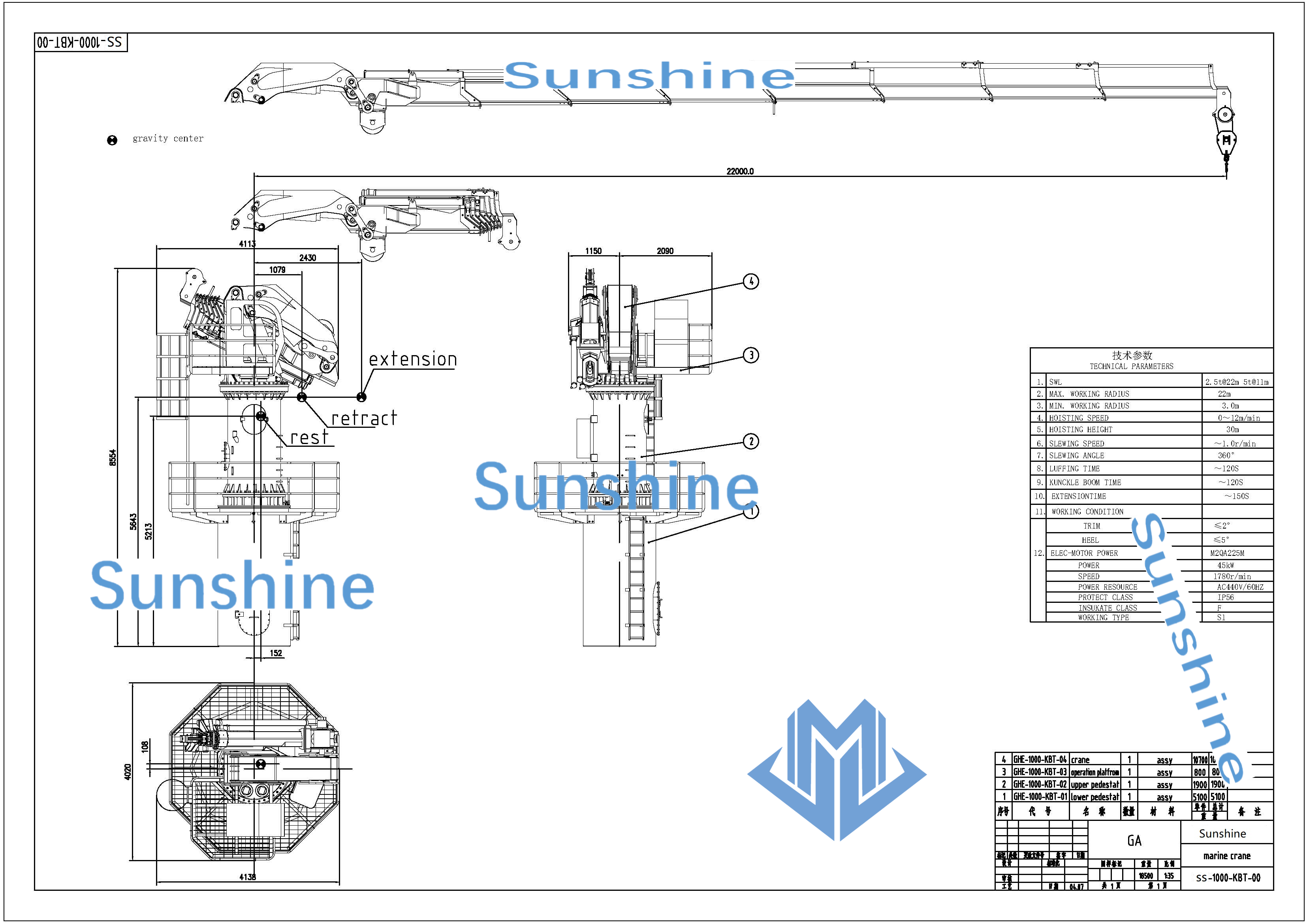

    General drawing



    Photos of our factory
