Tailor made high efficiency screw conveyors for bulk materials
conveying
A screw conveyor is transportation machinery transportation machinery widely used in factories and mines. The SSI screw conveyor is customized and continuously developed to
suit increasing plant and process requirements, offering this
availability combine with performance, flexibility, and service
life. The SSI crew conveyor is designed for efficient Horizontal
and Vertical transport of any kind of dry bulk material under
severe operating conditions and in continuous operation. The SSI
screw conveyor is a standard product, but it can be customized
according to the client`s technical requirement.

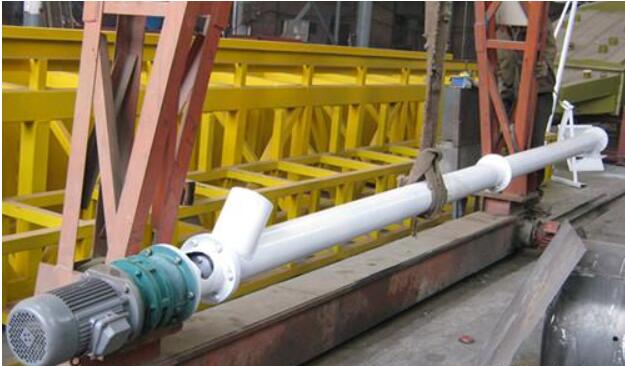

The screw conveyor is a kind of machinery that uses motor to drive
screw rotation and push materials to achieve the purpose of
conveying. It can be transported horizontally, obliquely or
vertically, and has the advantages of simple structure, small
cross-sectional area, good sealing, convenient operation, easy
maintenance, convenient closed transportation and so on. Screw
conveyor can be divided into two types: axial screw conveyor and
shaftless screw conveyor. In appearance, it can be divided into
U-shaped screw conveyor and tubular screw conveyor. Axial screw
conveyor is suitable for dry powder materials and small particle
materials without viscosity (e.g. cement, fly ash, lime, grain,
etc.) and shaftless screw conveyor is suitable for conveyor made of
viscous and winding materials. (e.g. sludge, biomass, garbage,
etc.) the working principle of the screw conveyor is that the
rotating screw blades move the materials to the screw conveyor, so
that the materials do not rotate with the screw conveyor blades.
The force is the weight of the materials and the friction
resistance of the screw conveyor shell to the materials. For the
screw blades welded on the rotating shaft of the screw conveyor,
the surface shape of the blades depends on the conveying There are
different types of materials, such as solid surface, belt surface,
blade surface, etc. The screw shaft of the screw conveyor has a
thrust bearing at the end of the material movement direction to
give the axial reaction force to the screw with the material. When
the captain is long, an intermediate suspension bearing should be
added.
Technical specification
| model | capacity
m³ | Maximum granularity size |
| % |
| 10 | 25 | 50 | 75 | 100 |
| NE30 | 32 | 90 | 75 | 58 | 47 | 40 |
| NE50 | 60 | 90 | 75 | 58 | 47 | 40 |
| NE100 | 110 | 130 | 105 | 80 | 65 | 55 |
| NE150 | 170 | 130 | 105 | 80 | 65 | 55 |
| NE200 | 210 | 170 | 135 | 100 | 85 | 70 |
| NE300 | 320 | 170 | 135 | 100 | 85 | 70 |
| NE400 | 380 | 205 | 165 | 125 | 105 | 90 |
| NE500 | 470 | 240 | 190 | 145 | 120 | 100 |
| NE600 | 600 | 240 | 190 | 145 | 120 | 100 |
| NE800 | 800 | 275 | 220 | 165 | 135 | 110 |
Applications
Case1
Case2
Case3
Case4
About us
Shanghai Sunshine Industrial Technology Co., Ltd. takes the
development of precision manufacturing capability as its strategic
goal, integrates design capability and manufacturing capability,
designs professional equipment and systems for handling various dry
bulk cargoes, and specializes in manufacturing large and
medium-sized precision parts for the equipment. Shanghai Sunshine
has excellent R & D and design ability of bulk cargoes conveying
equipment and integrates the outstanding manufacturing capacity and
years of rich manufacturing experience of Tonglu Fuchunjiang Power
Generation factory. Shanghai Sunshine has strong technical ability
and production ability with high quality and low labor price. Our
load and unload equipment includes a train tipping machine, ship
unloader, ship loader, etc. Our conveying equipment includes a belt
conveyor, screw conveyor, chain bucket conveyor, scraper conveyor,
inner bypass low-pressure dense phase pneumatic conveying system,
etc. And our storage equipment includes bucket wheel stacker
reclaimer, harrow reclaimer, scraper conveyor, etc. In addition,
Shanghai Sunshine also provide parts and welding steel structure
for heavy equipment.
