Heavy Duty Chain Bucket Elevator For Ore Conveying 600 m³/h

Ask Lasest Price
Brand Name :	SSI
Model Number :	SSI-630
Certification :	mill certificate
Price :	USD 220000
Payment Terms :	T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability :	50 set/year
Delivery Time :	120 days

Add to Cart

Product Details
Company Profile

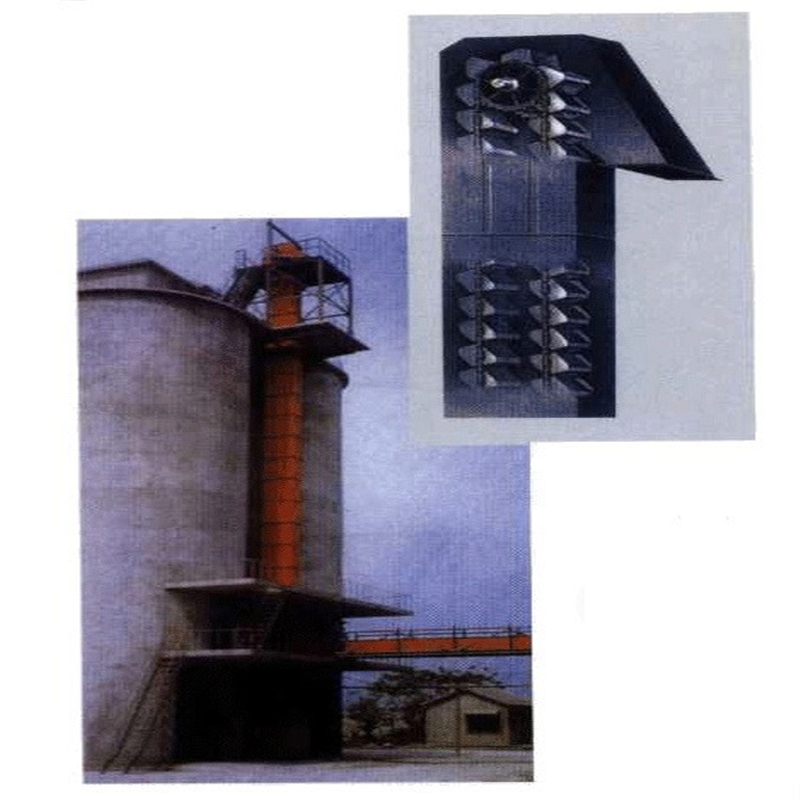

Heavy Duty Chain Bucket Elevator For Ore Conveying 600 m³/h

Tailor-made heavy-duty chain bucket elevator for ore conveying

Chain conveyors are mainly divided into four categories: chain plate conveyor, hanging chain conveyor, mesh belt conveyor, and plug-in line conveyor. The SSI bucket elevators are customized and continuously developed to suit increasing plant and process requirements, offering this availability combine with performance, flexibility, and service life. The SSI bucket elevators are designed for efficient vertical transport of any kind of bulk material under severe operating conditions and in continuous operation.

Mesh belt conveyor: the modular mesh belt uses the plastic hinge pin extending over the entire width of the conveyor belt to assemble the injection-molded mesh belt into an interlocking unit. This method increases the strength of the conveyor belt and can be assembled into any required width and length. The baffle and side plate can also be interlocked with hinged pins to become one of the integral parts of the conveyor belt

Specification of chain bucket elevator

Model	Capacity m³/h	Max largest lump
		percentage
		10	25	50	75	100
NE30	32	90	75	58	47	40
NE50	60	90	75	58	47	40
NE100	110	130	105	80	65	55
NE150	170	130	105	80	65	55
NE200	210	170	135	100	85	70
NE300	320	170	135	100	85	70
NE400	380	205	165	125	105	90
NE500	470	240	190	145	120	100
NE600	600	240	190	145	120	100
NE800	800	275	220	165	135	110

Applications

Case1

Case2

About us

Shanghai Sunshine Industrial Technology Co., Ltd. takes the development of precision manufacturing capability as its strategic goal, integrates design capability and manufacturing capability, designs professional equipment and systems for handling various dry bulk cargoes, and specializes in manufacturing large and medium-sized precision parts for the equipment. Shanghai Sunshine has excellent R & D and design ability of bulk cargoes conveying equipment and integrates the outstanding manufacturing capacity and years of rich manufacturing experience of Tonglu Fuchunjiang Power Generation factory. Shanghai Sunshine has strong technical ability and production ability with high quality and low labor price. Our load and unload equipment includes a train tipping machine, ship unloader, ship loader, etc. Our conveying equipment includes a belt conveyor, screw conveyor, chain bucket conveyor, scraper conveyor, inner bypass low-pressure dense phase pneumatic conveying system, etc. And our storage equipment includes bucket wheel stacker reclaimer, harrow reclaimer, scraper conveyor, etc. In addition, Shanghai Sunshine also provide parts and welding steel structure for heavy equipment.
