Bulk Material Curved Belt Conveyor System Long Distance

Ask Lasest Price
Brand Name :	SSI
Model Number :	customized
Certification :	mill certificate
Price :	USD 10000-60000
Payment Terms :	T/T, L/C, Western Union, MoneyGram
Supply Ability :	220 set/ year
Delivery Time :	120 days

Add to Cart

Product Details
Company Profile

Bulk Material Curved Belt Conveyor System Long Distance

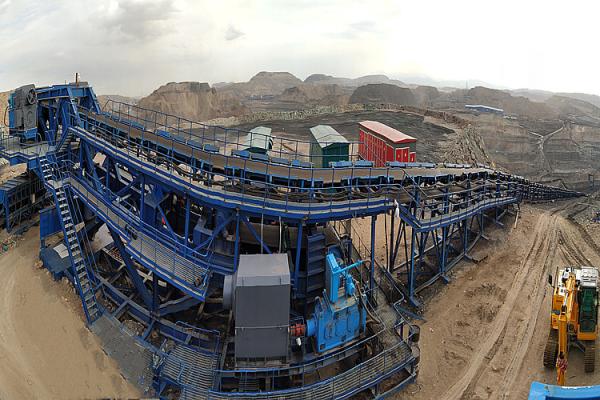

Tailor-made long-distance curved belt conveyor system for bulk material conveying

Shanghai Sunshine industry technology co., Ltd has been designing and supplying client bulk materials conveying systems for industries around the world for the past six years. Whether you are looking for a piece of equipment or a complete turnkey system, we are happy to offer you a customized solution, just customized to your specification requirement. We can provide bulk material handling systems for both new projects and existing systems. It`s used for handling comment material such as coal, clinker, aggregates, biomass products grain gypsum, iron ore, limestone, sulfur.

Trough belt conveyor, flat belt conveyor, climbing belt conveyor, turning belt conveyor, telescopic belt conveyor, and other forms. Lifting baffle, skirt, and other accessories can also be added to the conveyor belt to meet various process requirements. Both sides of the conveyor are equipped with a workbench and light frame, which can be used as an assembly line of belt conveyors such as electronic instrument assembly and food packaging.

specification of standard conventional conveyor belt

Model	Capacity(t/h)	Belt width(mm)	Speed(m)	Max distance(m)	Power of Motor(kw)	Diameter of pulley(mm)	Diameter of roller(mm)	Max incline angle(°)
DTS80/40/2*40S	400	800	2	800	2*40	500	89	+18
DTS80/40/2*55S	400	800	2	800	2*55	500	89	+18
DTL80/40/90S	400	800	2	1000	90	630	108	+18
DTL80/40/2*40	400	800	2	800	2*40	500	89	+18
DTL80/40/2*55	400	800	2.5	800	2*40	630	89	+18
DTL100/63/2*75S	630	1000	1.9	1000	2*75	630	108	+18
DTL100/80/160S	800	1000	2.5	1000	160	630	108	+18
DTL100/80/2*160S	800	1000	2.5	1500	2*160	630	108	+18
DTL120/120/2*160S	1200	1200	2.5	1000	2*160	800	133/159	± 5
DTL120/120/2*200S	1200	1200	2.5	1000	2*200	800	133/159	+18
DTL120/150/2*160S	1500	1200	3.15	1500	2*200	800	133/159	+18

Photos of our factory
