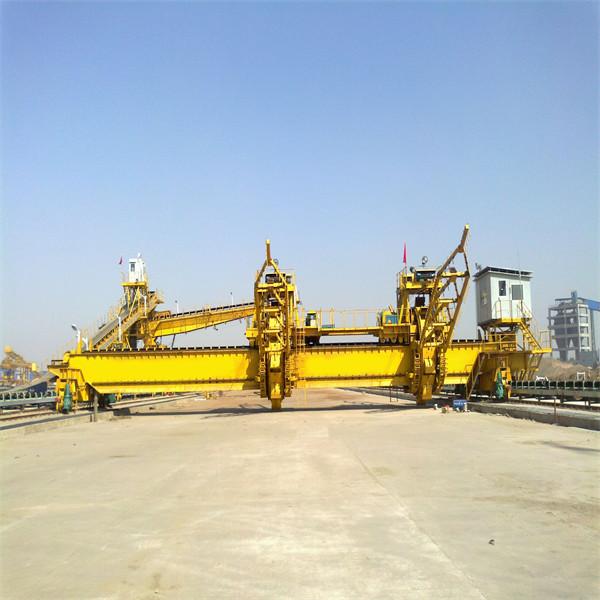

Product description of bridge bucket wheel reclaimer for long stockyard

applications

Long stockyard bridge bucket wheel reclaimer is widely used in raw material yards of iron and steel industries to meet the process requirements of mixing and reclaiming bulk materials such as coal, concentrate and fine ore.

feature

The equipment has high degree of automation, advanced technology and good homogenization effect. At the same time, the product has the characteristics of large stock yard reserves, small floor area and low pollution. It is an advanced mixing process equipment.

composition

The bridge type bucket wheel reclaimer is mainly composed of traveling mechanism, rake system, bucket wheel reclaimer mechanism, bridge, electrical control room, etc.

Working principle

The bucket wheel device of the bridge bucket wheel reclaimer runs back and forth along the length of the bridge. On the cross section of the material pile, the reclaimer of the bucket wheel device takes materials at different reclaiming points for the first time, and the bucket wheel device rotating around the main beam unloads the materials taken down at the low level into the receiving belt conveyor arranged in the main beam at the high level for the second time, When the excavated materials are unloaded to the ground belt conveyor of the system, the third mixing of materials is completed. In this way, the process of continuous reclaiming and unloading completes the reclaiming work.

able of equipment selection parameters

NOTICES

The customer shall provide the following information when place order:

• character of bulk material;
• Stockyard information;
• Process flow chart;
• Power supply;
• Communication and control requirements.

1.Brief Introduction—Bulk material conveying and service professional supplier

Shanghai Sunshine Industrial Technology is specialized in bulk material handling equipment, integrator and overseas agent of bulk material handling. Sunshine Industrial Technology takes the development of precision manufacturing capacity as its strategic goal， specializes in manufacturing large and medium-sized precision parts and reliable bulk material conveying equipment . In addition, we provide variety of solutions and equipment to clients based on requirement, including EPC, spare parts, consulting and design services. Our major product including load and unload equipment (train tipping machine system, ship unloader, ship loader etc), conveying equipment (belt conveyor, screw conveyor, bucket conveyor system, scraper conveyor system, dense phase pneumatic conveying system), storage equipment (bucket wheel reclaimer, scraper reclaimer, cranes and all kinds of grab bucket), screen equipment, auxiliary equipment.
In order to meet the client`s requirement, and provide comprehensive products and service in bulk material handling. We had signed a contract with bulk material handling equipment manufacturer leading company of China Huadian Caofeidian heavy industry equipment Co., Ltd ，in charge of the overseas market and project investment of Huadian Caofeidian heavy industry equipment Co., Ltd；Reaching an agreement in charge of the overseas market of Liaoning Zhigu mining equipment Co., Ltd ；Zhejiang Xiangshan Guangming Belt conveyor factory and Wuxi Yixiang machinery Co., Ltd.
To be sincere and keep moving, Shanghai Sunshine industrial technology Co., Ltd always dedicate to high quality products and service!


2.Organization structure

3.Maine product and technical consulting

4.qualification documents

Qualification documents of authorized units in overseas markets

Qualification documents of authorized units in overseas markets

5.Production equipment and facilities

6.Production product display
