1500 Tph Self Propelled Ship Unloader For Handling Bulk Cargo At Port

1500 tph Self propelled ship unloader for handling bulk cargo at port

Mechanical (electric) differential bridge-type ship unloader is a suite of effective, reliable and high performance unloading appliances customized to the port and terminal business handling dry bulk cargoes.
The ship unloader is installed on the port,unloading dry bulk cargoes(coal, ore, mineral powder, cement, coke, ash, grain etc) from vessel`s hold via grab bucket. Discharging dry bulk cargoes to the hopper, then to the conveyor belt via hopper. By conveyor belt the dry bulk cargoes are conveying to the stockyard for storaging.
Bridge-type ship unloader including self-propelled trolley type and wire rope drawing trolley type. Wire rope drawing trolley type including main and auxiliary trolley type and differential four drums trolley type. Differential four drums trolley type including mechanical differential four drums trolley type and electric differential four drums trolley type.
Mechanical (electric) differential bridge-type ship unloader is most advanced and widely used today. Its hoisting system, opening system and drawing system, are controlled by four drums. It was particularly designed for specializing in professional bulk handling solutions that provide very highest levels of performance.

All the ship unloaders are designed based on our client`s technical specifications and applications, so the technical discussion meeting is essential before the project proposal stage.

model	Self-propelled trolley	Main and auxiliary trolley	Mechanical differential	Electric differential
weight(%)	100%	80%	60~65%	60%
stability	1.4	1.5	1.7~1.8	1.7~1.8
Wire rope lengtg	1	6	2.5	2.5
Power consumption	1	2.5	1.1	1.2
Operating cost(%)	100%	95%	90%	90%
Fault and maintenance	Breakdown rate high and hard to maintain	Breakdown rate low and easy to maintain but wire rope system is complicated	Wire rope system is simple, easy to change gear reducer is specific design,hard to maintain and change	Wire rope system is simple,gear reducer is standard,easy to maintain,electrical system is complicated
Cost of fundamental and facilities(%)	100%	95%	85%	85%

Specification of ship unloader

vessel

capacity

unload time

lift capacity
of grab

weight of
single grab

cycle
times

one cycle

density of
bulk material

rail
distance

rail

wheel
pressure

extending reach distance
of grab

rear reach
distance of grab

hoisting
speed

lowering
speed

trolley
speed

traveling
speed

DWT

t/h

hours

t/m3

m/min

1000

340

2.94

5.5

61.82

58.23529412

0.85

QU80

350

100

120

5000

500-2000

2.5~10

12.5~48

7.3~28

67.42~71.43

52.56-53.4

0.8~0.9

10.5~20

QU80~100

245~600

24~28

8~16

100~160

120~190

150~240

8000

1000

8.00

14.8

67.57

53.28

QU100

350

135

150

180

20000

800-1000

20.00

22~30

13.3~14.8

55.56~67.57

53.28~64.8

0.85

16~22

QU80~120

330~530

24~38

12~135

135~150

180

20~25

30000

1250

24.00

19.6

63.78

56.448

0.95

QU100

505

135

150

220

35000

800~1600

21.88~43.75

22~40.5

12.8~25

62.52~76.19

54~57.6

0.85~0.95

14~24

QU80~100

330~530

27~31

11~19

120~135

135~180

180~220

20~25

50000

1250~1650

33.3~40

32~40

19.5~25

60~67.35

56.16~60

0.85~0.95

22~26

QU100~120

500~520

30~33

17~19

150~200

180~240

180~220

20~25

70000

1250~1750

40~56

34~42

20.5~25.75

52.08~68

53~69.12

0.85~0.9

22~30

QU100~120

500~600

32~40

16.5~27

160~220

190~240

180~240

20~25

100000

1000~1800

55.56~100

30~46

18~27.6

55.56~75.12

48~64.8

0.8-1

22~26

QU120

450~600

30~38

17~20

135~180

150~220

180~240

150000

1800~2100

71.42~83.33

45~52

27.2~31.5

63.16~66.67

54~57

0.90~2.4

24~28

QU120

600~736

39~41.5

19~24

160~200

190~240

200~240

20~25

Main structure of bridge-type grab ship unloader

Mechanism of bridge-type grab ship unloader

1.Traveling mechanism

2. Main structure of bridge-type ship unloader

3. Hopper system

4. Grab bucket hoisting mechanism(mechanical differential four drums)

5.Grab bucket(wire rope reeving system)

6. Luffing mechanism

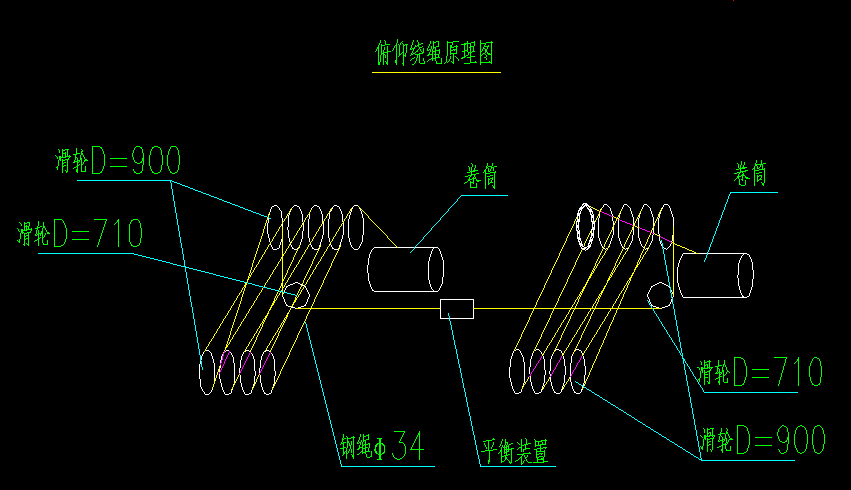

7.Wire rope reeving system of luffing mechanism

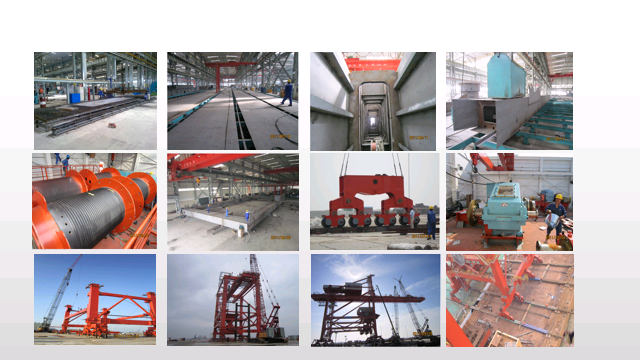

Overview of production process

Photos of our factory
