Gantry Type Scraper Reclaimer for Bulk Cargo Handling Gantry-type
Reclaimer Stacking and Reclaiming Equipment
Brief introduction of Gantry Type Scraper Reclaimer Gantry-type
Reclaimer Stacking and Reclaiming Equipment
Longitudinal stockyard gantry type scraper reclaimer is widely used
in steel, cement, chemical and other industries. It is suitable for
longitudinal stockyards to stacking material and blending
requirements.
Longitudinal stockyard gantry type scraper reclaimer is designed as
compact size, high performance, environment friendly, is an
advanced equipment with advance process, efficiency blending, and
automatic operation.
The longitudinal stockyard gantry type scraper reclaimer is known
as gantry type and semi gantry type to meet different stockyard
requirements. The semi gantry type scraper reclaimer is equipped
with a over head crane to stack material, and the gantry type
scraper reclaimer is used with a side stacker.
Working principle
The reclaimer is used with the stacker in the stockyard. The
materials stacked by the stacker on one side of the silo move back
and forth on the rail on the other side of the silo by the
reclaimer. The materials are discharged into the chute through the
scraper reclaiming system, and sent to the discharge belt conveyor
through the chute for transportation. After each layer of material
is taken by the reclaiming arm, the corresponding height shall be
lowered according to the preset command, and the material stack
shall be taken out layer by layer at the corresponding reclaiming
operation speed until all the materials in the silo are taken out.
This reclaiming process makes the materials stacked by the stacker
to blend again
feature
The gantry type scraper reclaimer has the characteristics of
compact design, high capacity performance, environmental friendly
and totally automatic operation.
composition

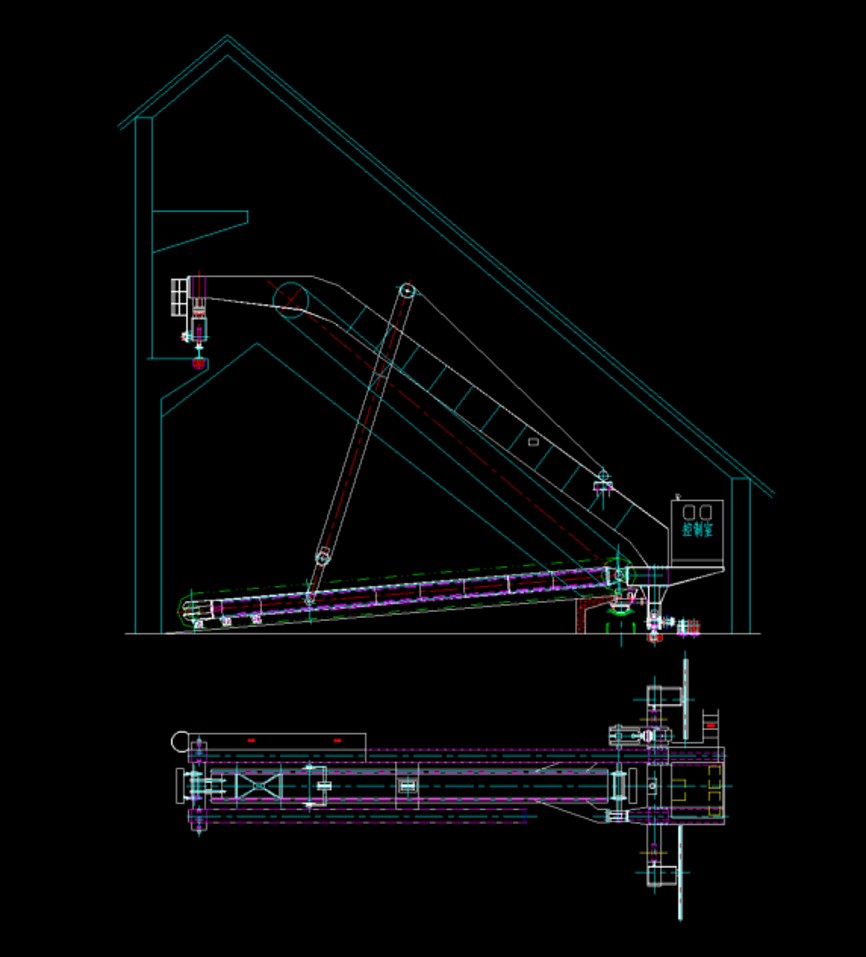

The gantry type scraper reclaimer is mainly composed of traveling
mechanism, scrap conveying system, luffing system, and electrical
control system and other components
applications
The longitudinal stockyard gantry type scraper reclaimer is mainly
used for scraping sandstone, ore, sandstone, coke and other bulk
materials in the stockyard of large enterprises such as water
conservancy companies, steel companies, coal coking companies and
cement companies.
Specification of circular bridge type scraper stacker and reclaimer
| description | parameter | unit |
| material | limestone,raw coal | |
| density | 0.8~1.5 | t/m3 |
| granularity | <70 | mm |
| moisture | <2 | % |
| stacking capacity | 500~2000 | t/h |
| reclaiming capacity | 200~1200 | t/h |
| rail span | Φ60~Φ120 | m |
NOTICES
The customer shall provide the following information when place
order
- character of bulk material;
- Stockyard information;
- Process flow chart;
- Power supply;
- Communication and control requirements.
