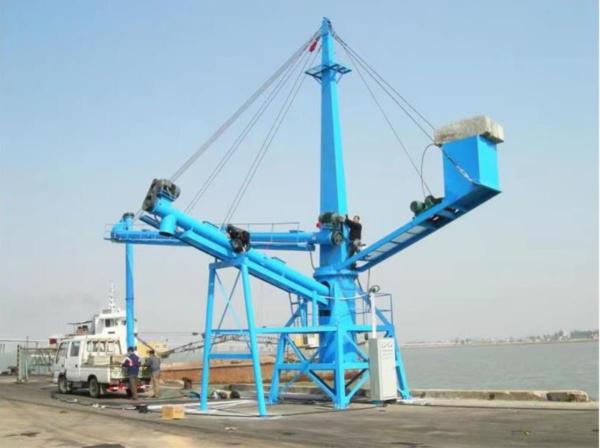

Stationary Continues Screw Ship Unloader For Unloading Grain

Stationary screw type continues ship unloader for unloading grain from vessel to shore

Screw-type ship unloaders can be divided into self-propelled, fixed, and floating types according to whether the whole machine can be moved and the installation position. They are suitable for different wharf loading and unloading process systems.

The self-propelled screw ship unloader is characterized by a traveling mechanism, which can walk along the track laid at the front of the wharf. It uses the cooperation of walking, rotation, pitch, and swing to unload the cargo hold of seagoing ships. In addition to unloading to the belt conveyor parallel to the wharf shoreline, the discharged materials can also be transferred to the belt conveyor that can pitch around the hinge point at the end of the gantry to directly send the materials to the storage yard.

The self-propelled screw ship unloader is suitable for coastal and inland ports with vertical quay walls. The target ships are various bulk cargo ships. In the loading and unloading process system of the special wharf for bulk cargo such as cement, chemical fertilizer, grain, and coal, the self-propelled screw ship unloader has many successful experiences and has increasingly proved to be an economic and efficient ship unloading equipment. Self-propelled screw ship unloader has also been applied in coal unloading operation at power plant wharf.

Technical Specification

model	LC60	LC100	LC150	LC200	LC300
Rated capacity t/h	60	100	150	200	300
Power source	380v 50hz
Total power kw	53	70	86	121	159
L1	7	8	9	10	11
H1	6	7	8	9	10
Horizontal swing angle	±30°≥@≥40°
Vertical swing angle	±30°≥@≥40°
Swing angle	270°
Overall dimension LWH	12.538.5	13.539.5	14.53.510.5	15.54.411.5	15.54.411
Base size	1.75*1.75	1.75*1.75	1.85*1.85	1.95*1.95	2.0*2.0

Main component

1.screw conveyor
L1:screw conveyor	Out dimeter:325mm,length 3m,wall thickness 8mm,motor 22KW,China Bearing :UCFC: Japan
L2:screw conveyor	Out dimeter:355mm,length 5m,wall thickness 10mm,motor 22KW,China Bearing :UCFC Japan
L3:screw conveyor	Out dimeter:377mm,length 10m (If on truck,L3:11m),wall thickness 10mm,motor 30KW,China bearing:UCFC Japan
L4:screw conveyor	Out dimeter:508mm,length 11m,wall thickness 8mm,motor 37KW,China. Bearing :UCFC Japan
1.2)material reclaiming head	Hydraulic motor ,china
Slewing mechanism
1.1)slewing bearing:1
1.2)slewing driver
1.3)Connetor	L1,L2:1, L2,L3:1, L3 and frame:1 Frame and L4:2
Hydraulic components
Hydraulic cylinder , hydraulic pump, solenoid valve, (Taiwan China) hydraulic motor 11kw,(Taiwan China)
Electrical cabinet Size :1000x1000x250mm power:180KW
Wireless Remote control ,(Taiwan China)
