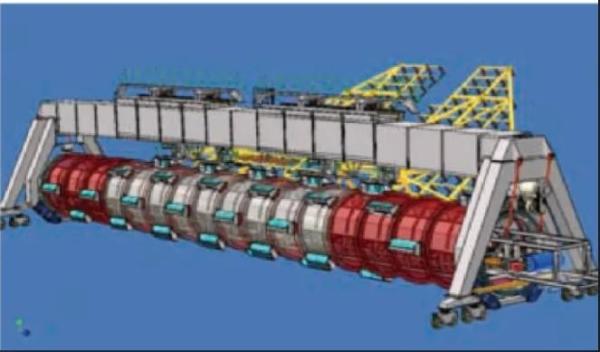

Heavy duty drum reclaimers for coal reclaiming in coal terminal stock

The drum reclaimers, traveling a horizontal runway, are designed to service parallel storage piles in bi­directional operation in an open stockpiles/yard type storage. The must have 3,500 tons per hour capacity to handle <300 mm sized coal.

The substructures functionally connected to the drum consist of a rail track, electric supply cables, water supply hoses for the sprinkler system, and end bumpers.

The machine is running on running wheels that are mounted on the undercarriage supports. Each undercarriage support has a driving and a running wheel. The drive works with shaft-mounted bevel gear. The driving motors are frequency controlled. The side guide of the undercarriage is realized with a floor railhead, which transmits the lateral forces onto the rails. The undercarriages are equipped with a skew control. The skew is corrected by reducing the speed of the prior running undercarriage. The machine is equipped with a limit switch, which is mounted at the outer end of the lower undercarriage support. The limit switch terminates the moving range of the scraper in both directions. The angle encoder for the path measurement of the scraper is located on the loose running wheel of the lower undercarriage support and detects the position of the machine.

Specification of drum reclaimer

NOTICES

The customer shall provide the following information when placing order

• The character of bulk material
• Stockyard information
• Process flow chart
• Power supply
• Communication and control requirements

Photos of our factory

1.Brief Introduction—Bulk material conveying and service professional supplier

Shanghai Sunshine Industrial Technology is specialized in bulk material handling equipment, integrator and overseas agent of bulk material handling. Sunshine Industrial Technology takes the development of precision manufacturing capacity as its strategic goal， specializes in manufacturing large and medium-sized precision parts and reliable bulk material conveying equipment . In addition, we provide variety of solutions and equipment to clients based on requirement, including EPC, spare parts, consulting and design services. Our major product including load and unload equipment (train tipping machine system, ship unloader, ship loader etc), conveying equipment (belt conveyor, screw conveyor, bucket conveyor system, scraper conveyor system, dense phase pneumatic conveying system), storage equipment (bucket wheel reclaimer, scraper reclaimer, cranes and all kinds of grab bucket), screen equipment, auxiliary equipment.
In order to meet the client`s requirement, and provide comprehensive products and service in bulk material handling. We had signed a contract with bulk material handling equipment manufacturer leading company of China Huadian Caofeidian heavy industry equipment Co., Ltd ，in charge of the overseas market and project investment of Huadian Caofeidian heavy industry equipment Co., Ltd；Reaching an agreement in charge of the overseas market of Liaoning Zhigu mining equipment Co., Ltd ；Zhejiang Xiangshan Guangming Belt conveyor factory and Wuxi Yixiang machinery Co., Ltd.
To be sincere and keep moving, Shanghai Sunshine industrial technology Co., Ltd always dedicate to high quality products and service!


2.Organization structure

3.Maine product and technical consulting

4.qualification documents

Qualification documents of authorized units in overseas markets

Qualification documents of authorized units in overseas markets

5.Production equipment and facilities

6.Production product display
