Tail Lift Equal to Hiab quality
A tail lift is a fantastic mechanical device designed to facilitate
the material handling of goods from ground level to the level of
the truck bed. It makes the loading and unloading work from truck
bed to ground or from ground to the truck bed is so easy.
Tail lift is a kind of hydraulic lifting and handling equipment,
which is installed at the rear of vehicle and powered by on-board
battery. It has been popular in developed countries in Europe and
the United States for 30 to 40 years. In the 1990s, it was
introduced into mainland China through Hong Kong and Macao and
quickly accepted by customers. When loading and unloading goods,
the van with tail lift is not limited by the site, equipment and
manpower. Even if only one person can complete the loading and
unloading of goods. The tail lift loading and unloading is fast,
safe and efficient, which can greatly improve the transportation
loading and unloading efficiency. It is a necessary equipment for
modern logistics transportation. It is widely used in logistics,
finance, petrochemical, tobacco, commerce, manufacturing and other
industries.
The taillift has the characteristics of fast, safe and efficient,
which can greatly improve the transportation loading and unloading
efficiency. It is one of the necessary equipment for modern
logistics transportation. Widely used in logistics, post, tobacco,
petrochemical, commerce, finance, manufacturing and other
industries
Fast: simply control the lifting and lowering of the tail lift
through the operation button, and the goods can be easily
transferred between the ground and the carriage.
Safety: The use of tailboard can make the loading and unloading of
goods easy without manpower, improve the safety guarantee of
operators, reduce the damage rate of goods during loading and
unloading, especially for flammable, explosive and fragile goods,
which is more suitable for tail lift loading and unloading.
High efficiency: loading and unloading with tail lift can be
completed by one person without other equipment and restriction of
site and personnel. It can effectively save resources, improve work
efficiency, and give full play to the economic efficiency of
vehicles
SPECIFICATION
| Model | SSI-2500 |
| Lifting capacity | 2500 kg |
| Lifting gear hydraulic | 2 lifting cylinder/2 tilting cylinder |
| Main beam | 180mm*180mm |
| Lifting arm pitch | 1310mm |
| Load center, longitudinal | 700mm |
| Load center, across centre | central, 50% rated load on one side |
| Platform overlap with floor | -57mm |
| Inclination angle of the platform | +90°~-10° |
| Power source | DC 12V or 24V
|
General drawing

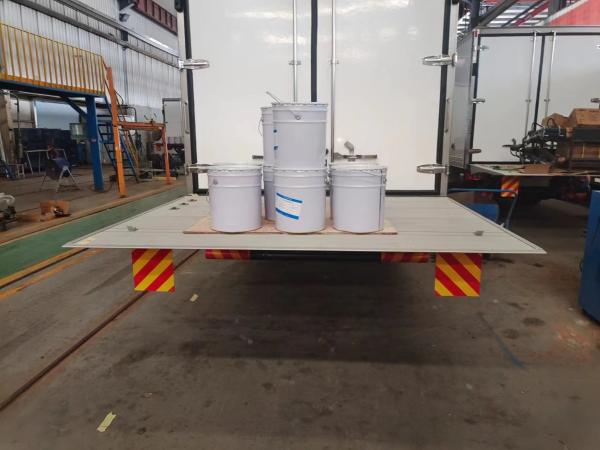

Demonstration pictures
